Annealing furnace

Designer and manufacturer of industrial Annealing, Aging, Stress relieving furnace, degassing, curing chamber, Oil heang cooling unit and up gradaon of furnace by using advance technology for energy conservaon.

OVERVIEW

Annealing Ovens will eliminate internal stresses in materials such as glass, various

alloys, and polymer. The funcon of an Annealing Oven is to perform the process of soening an object or changing other properes of the object through cycles of heang and cooling. The Annealing Oven can be configured in various chamber styles such asBatchor Connuous Conveyor Typical Annealing applicaons will soen, enhance duclity, and cold working properes in various materials. These materials include aluminium, brass, copper, steel, various alloys and polymer.

Each Industrial Oven project undergoes a comprehensive evaluaon of every producon requirement. The assessment includes areas such as producon goals, part configuraon and construcon, part mass, temperature profile, and facility locaon or elevaon.

photo 3

FEATURES

  • Recirculaon fans with high efficiency motors to reduce energy consumpon.
  • Recirculaon ductwork designs provide precise airflow to specific areas of the pro duct resulng in smaller foot print ovens thus reducing ulity and factory space costs.
  • Private labelled and purchased components meet UL, UR, and CE standards.
  • Programmable controllers with HMI (Human Machine Interface) displays allow for user friendly operaon and machine diagnoscs.
  • Energy efficient control panel with IOT based automaon through PLC & HMI i.e. Data logging, energy consumpon analysis, remote monitoring through pc or mobile phone, opon to integrate with SAP.
  • Factory tested to ensure on me delivery and field start up.

OPTIONS

  • PLC/HMI for process automaon
  • IOT based features i.e. remote monitoring
  • Data acquision
  • Recirculaon fans
  • Automac shutdown circuit
  • UL/CE listed electrical panel accessories
  • Special temperature uniformies
  • Stainless steel construcon
  • Spare parts
  • Field installaon, installa on supervision and commissioning.

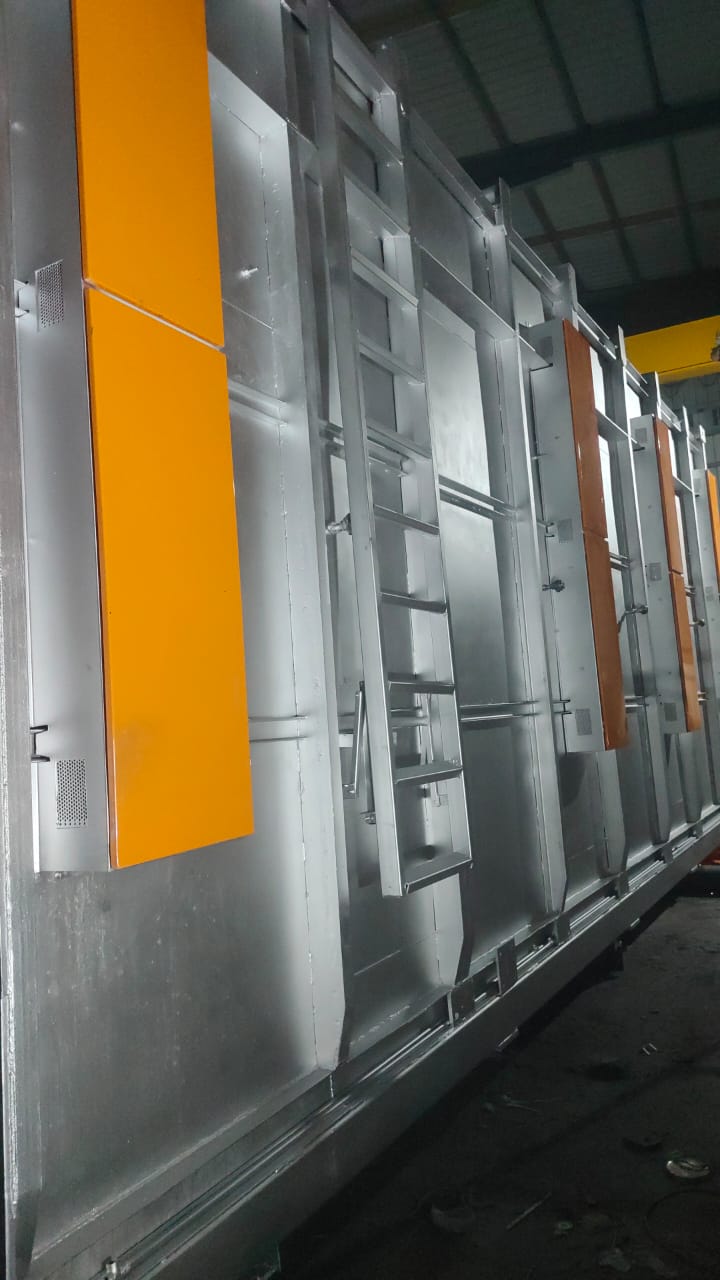

photo 7

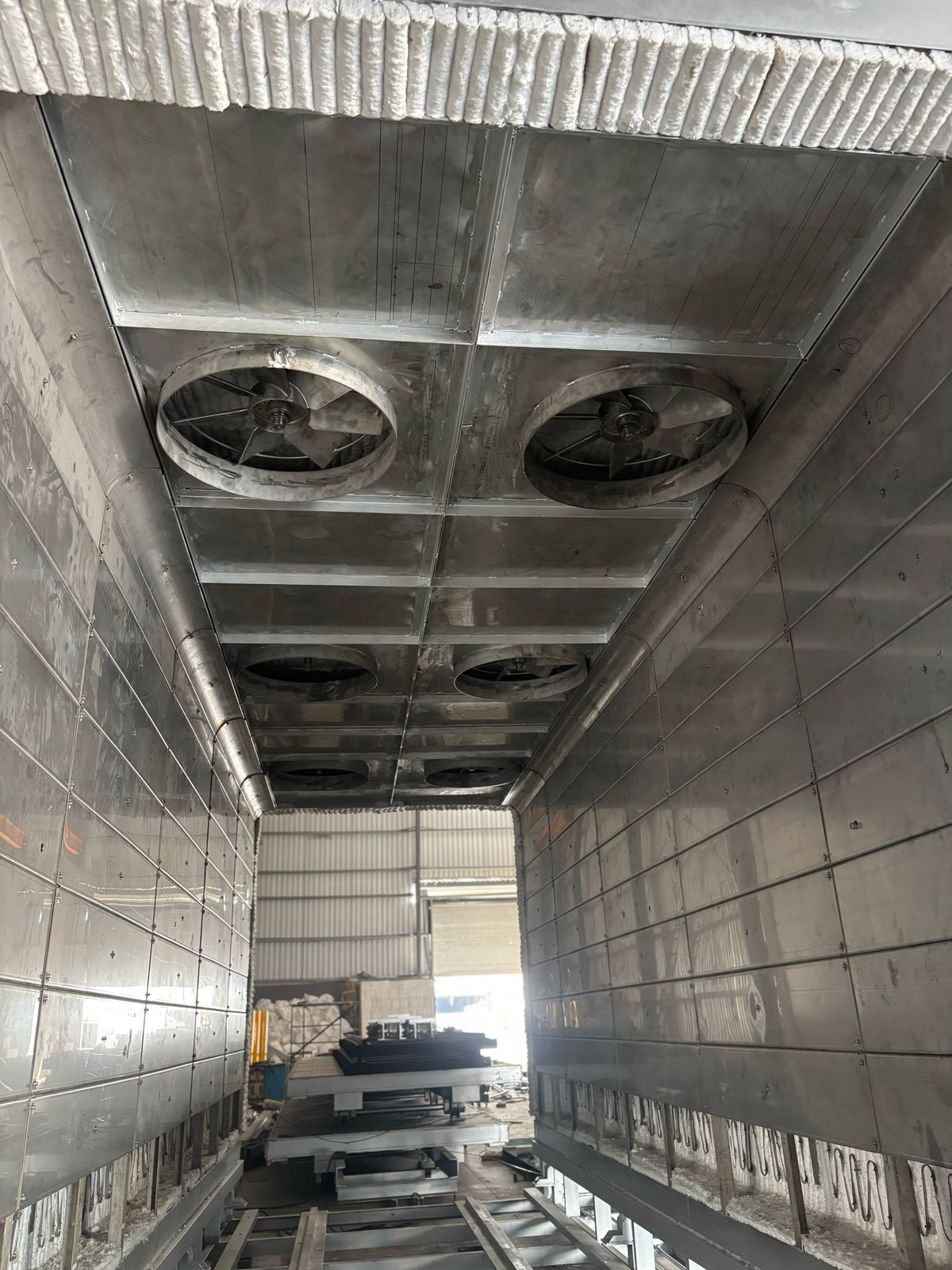

photo 1

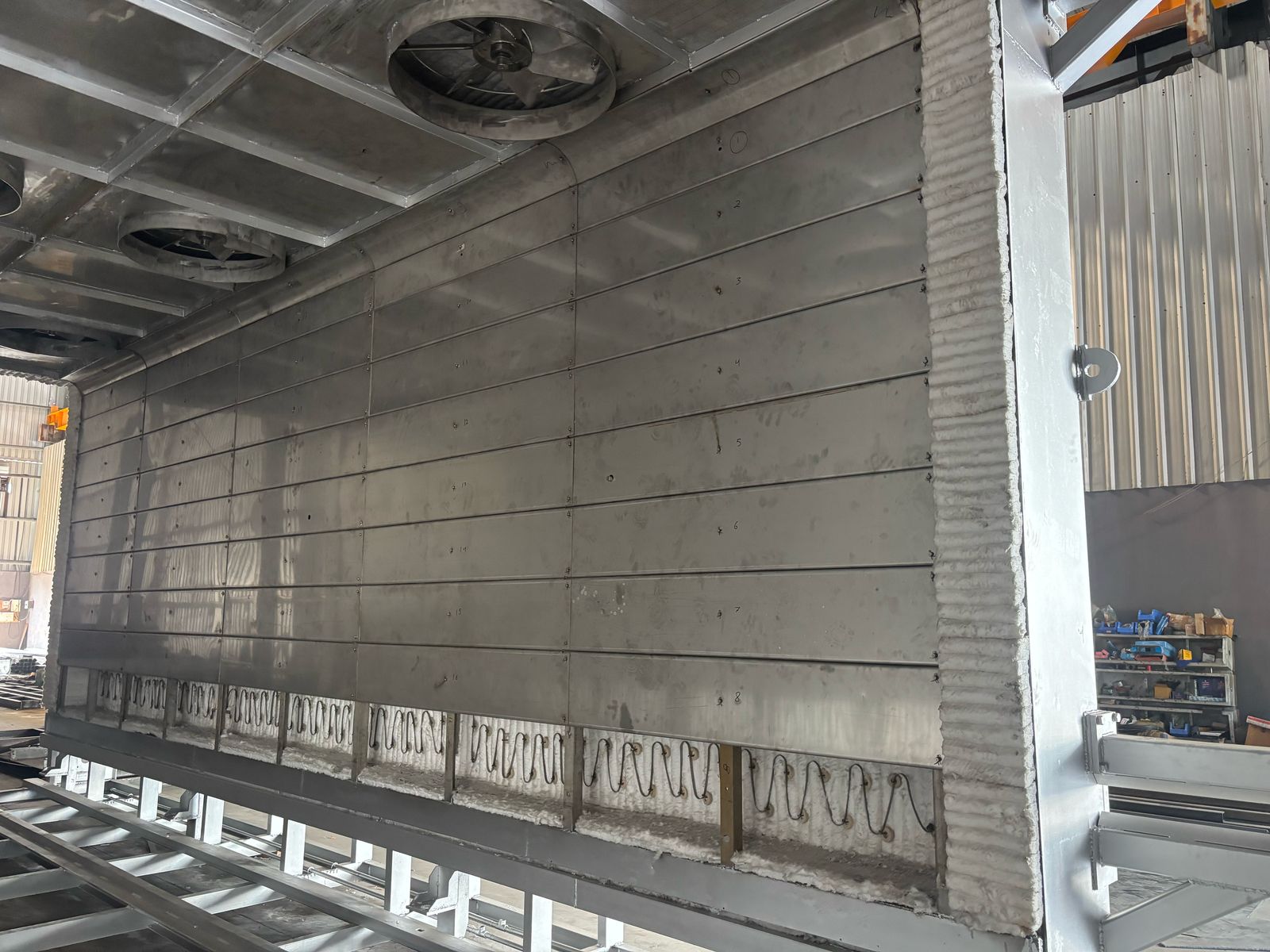

photo 2

ANNEALING OVEN

Annealing is a heat treatmentprocess which alters the microstructure of a material to change its mechanical or electrical properes. Typically, in steels, annealing is used to reduce hardness, increase duclity and help eliminate internal stresses. Annealing ovens are used to heat treat the materials in a controlled and consistent environment.

What is Heat Treang?

A combinaon of heang and cooling operaons applied to a metal or alloy in the solid state to obtain desired condions or properes. Heat treang processes require three steps:

1. Heating to a specified temperature.
2. Holding at that temperature for the appropriate amount of me.
3. Cooling according to prescribed methods.

  • Batch Ovens are used for a wide variety of heat processes including drying, curing,aging, annealing, stress relieving, bonding, tempering, preheang, and forming. Batch ovens process products one at a me or in groups (“batches”). The part(s) are brought into the oven in batches on racks, carts, or trucks, and can be loaded manually or via automated loading.
  • Connuous Conveyor Ovens offer labor savings and material handling efficiency over typical batch processes. Conveyors can be overhead, belt (steel or fabric), powered roller, chain or slat. Conveyor ovens perform the same processes as batch ovens, but deliver a higher throughput. Connuous ovens can include mulple zones operang at different temperatures. Will the oven be customized for my applicaon? Industrial ovens and furnaces are available in standard or custom models.

What heat processes can be done in an Industrial Oven?

Aging: Aging ovens are used to increase the strength of an alloy.

Annealing: Annealing ovens soen parts by heang to and holding at suitable temperature followed by cooling at a controlled rate. Annealing is used to reduce hardness, increase duclity and help eliminate internal stresses.

Baking : Baking ovens heat objects to a low temperature in order to remove entrained gases.

Curing : Curing ovens raise the product mass and coated material to a specified temperature and holds this temperature for a set me. Curing Ovens cure parts, coangs, and adhesives.

Drying : Drying ovens remove water or other liquid from a material or object.

Preheang : Preheat ovens are used in a variety of processes that require heang the product prior to a secondary process such as forming, coang, fing or welding.

Powder Coang : Aer applicaon of the powder coang, the parts enter a curing oven where, with the addion of heat, the coang chemically reacts to produce a heavy duty finish.

Stress Relieving : A heat treatment process used to reduce internal residual stresses in an object or material.

Tempering : Tempering decreases the brileness of the metal and is usually performed aer hardening or quenching. For ovens and furnaces, SHINE TECH INDUSTRIES develops and confirms the heang process (me, temperature and velocity) to meet the customer’s specificaons and deliver high quality, long lasng equipment. SHINE TECH INDUSTRIES is your equipment partner from design-to installaon and throughout the life of t he machine.

SPECIFICATIONS

  • Heavy gauge Aluminized Steel
  •  304, 316 Stainless Steel or other nickel alloys for temperature and corrosion resistance
  •  Applicaon specific, high-Density energy-saving insulaon.
  •  Fabricated rigid Construcon.
  •  Easy access to the interior of the oven, fan, and heang chamber.
  •  Input Power 3 phase 415 Volt AC, 50 Hz.
